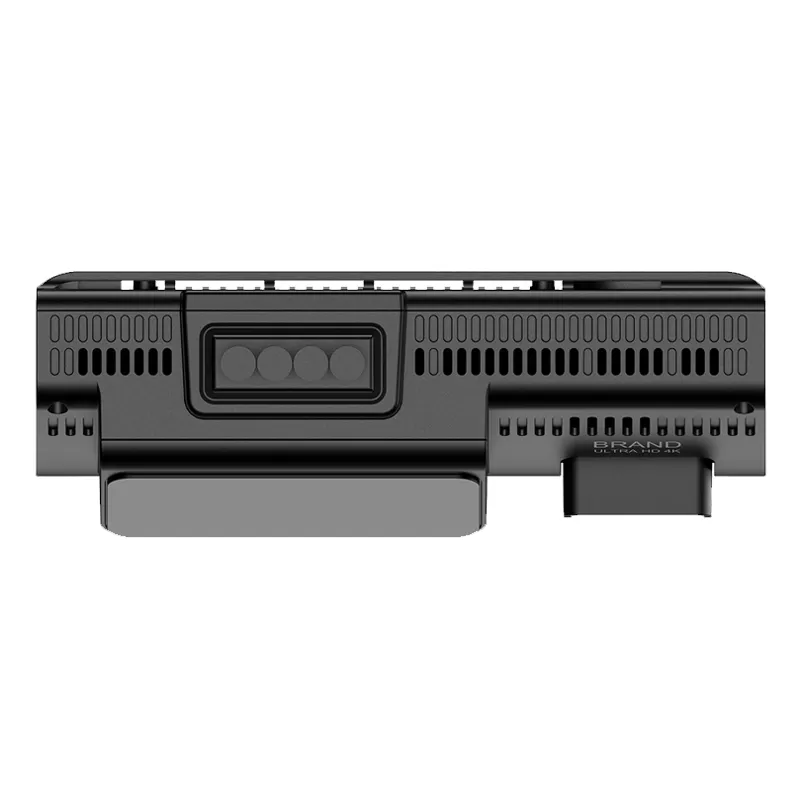

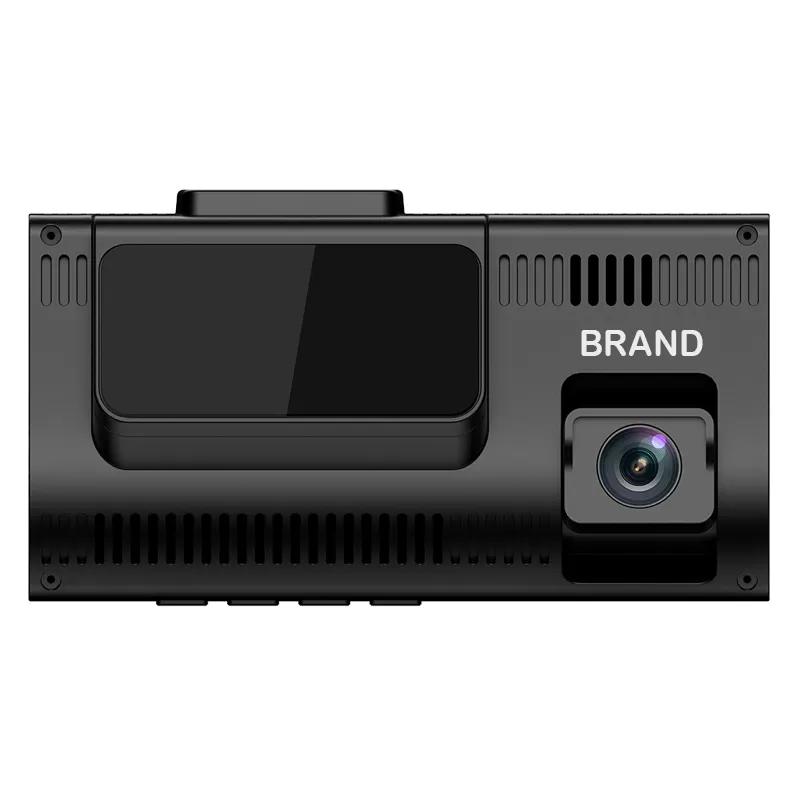

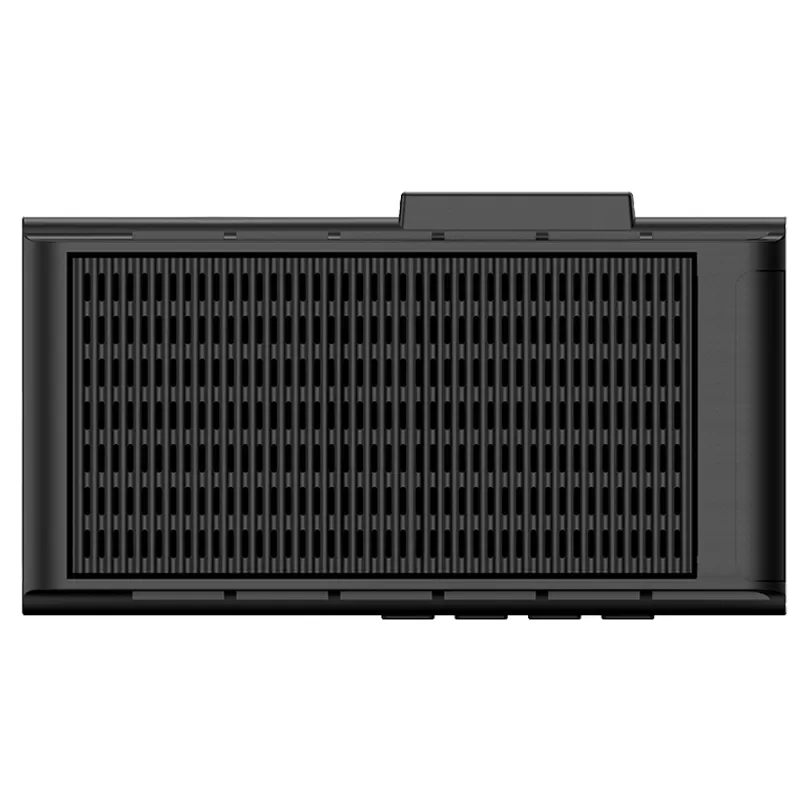

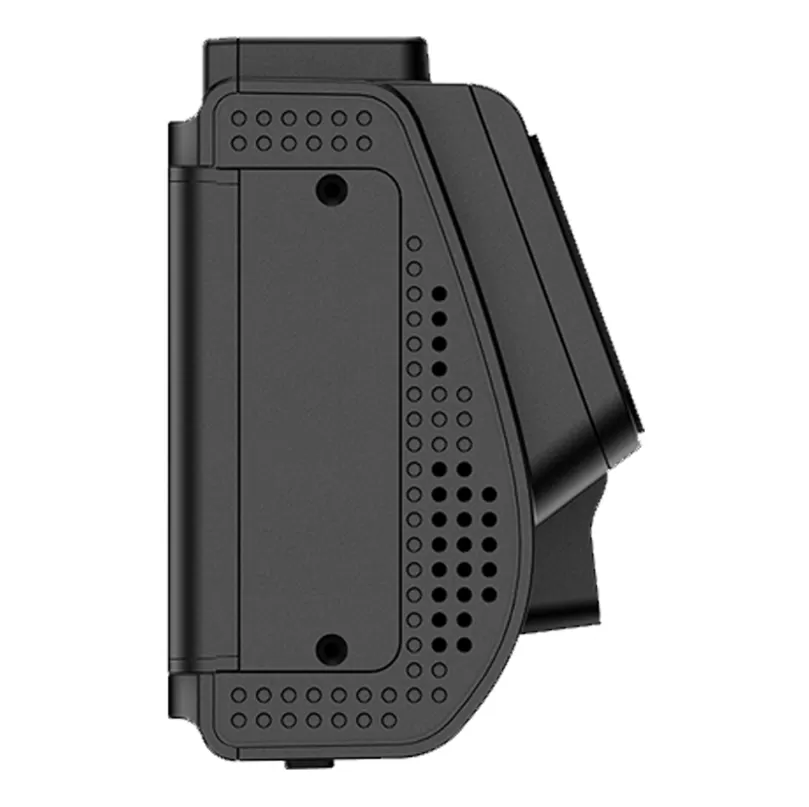

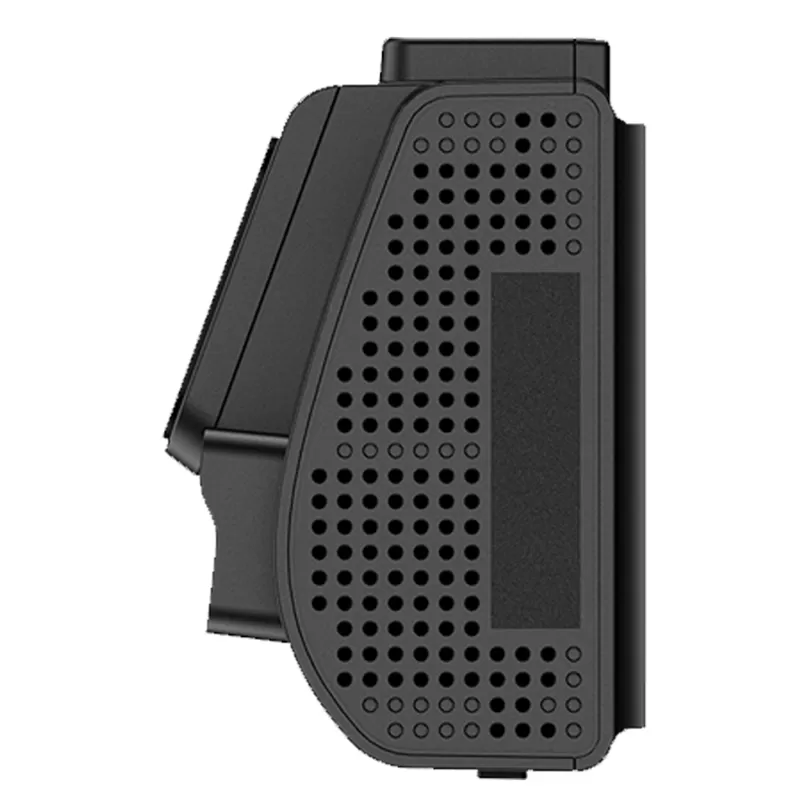

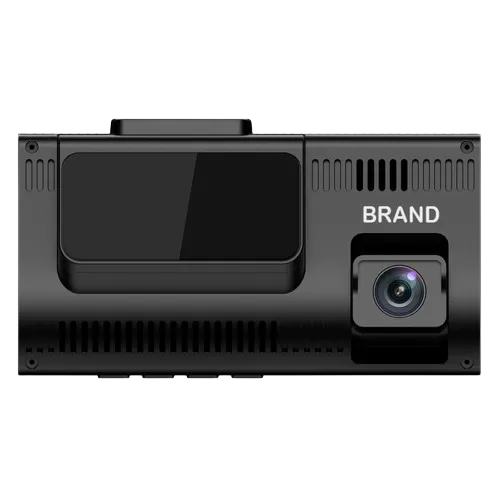

4-CH Dashcam HB-T8 is a highly intelligent dashcam with GPS tracking and an ADAS algorithm. Up to 4 channels of video input catch more information about driving and can remind drivers to drive safely. It records videos to help with insurance claims, judicial investigations, and safeguarding drivers’ rights and interests.
4-CH Dashcam HB-T8 is a 4-channel fleet dashcam built for ride-hailing platforms, trucking fleets, and public transport operators. It pairs a 720P ADAS front camera with an optional DMS cabin camera and two additional AHD channels for side or rear coverage. Built-in 4G LTE and GPS/Beidou modules stream video and location data to the cloud in real time, giving fleet managers remote visibility across every vehicle.
|
Function |
Parameter |
Note |
|
| System | Operating System | Linux | |
| Interface | OSD Menu | ||
| Communication | Cellular Network | 4G LTE(Cat4)/3G/2G | |
| WIFI | WIFI 2.4G | ||
| GNSS | Module | GPS/Beidou | |
| Camera | Front Camera | 1280*720/25fps/f1.8/FOV=106°/Full Color | ADAS（optional） |
| Sub Camera（optional） |
1280*720/25FPS/F2.0/FOV=72°/Black&White/Monochrome |

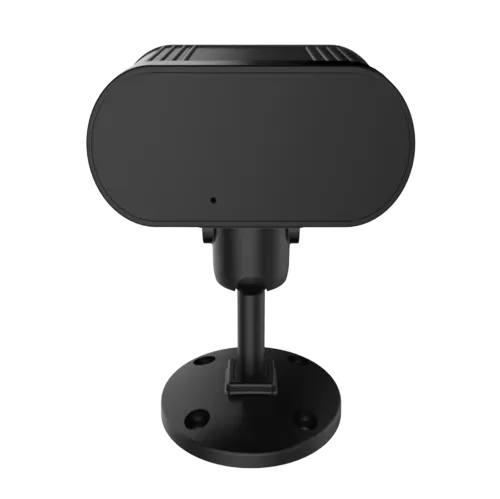

DMS（optional） | |
| AHD3（optional） | 1280*720/2.5FPS/F2.0/FOV=118°/Full Color | ||
| AHD4（optional） | 1280*720/2.5FPS/F2.0/FOV=118°/Full Color | ||
|
Video Format |
H.264 | ||
| Storage |
Storage Media |
SD Card: 1 SD Card, Max. 512GB, Class 10 | |
|
Playback |
Support | PC software (Web /APP) | |
| Application Scenario | Recommended Configuration (Cameras / Accessories) | Core Value |
|---|---|---|
| Ride-Hailing / Taxi | Front camera + Infrared cabin camera + SOS panic button + DMS (fatigue & distraction monitoring) | Evidence for driver-passenger disputes; real‑time fatigue/distraction alerts; one‑tap emergency help. |
| Logistics / Delivery Trucks | Front camera + Cargo area camera + Right‑side blind‑spot camera + Fuel consumption sensor | Cargo theft/damage tracking; blind‑spot collision warning; route misuse prevention & fuel cost control. |
| School Buses | Front camera + Panoramic cabin camera + Door‑entry camera + Child‑left‑behind alarm integration | Ridership check with parent notifications; eliminates child forgotten‑on‑bus risks; driver behavior compliance. |
| City Buses / Public Transit | Front camera + Front & rear door cameras + Panoramic cabin camera | Theft/dispute video evidence; passenger flow monitoring; full‑view accident liability determination. |
| Corporate / Government Fleets | Front + rear cameras + 4G real‑time video streaming + GPS tracking | Prevent unauthorized private use; remote live video viewing; accurate mileage verification. |

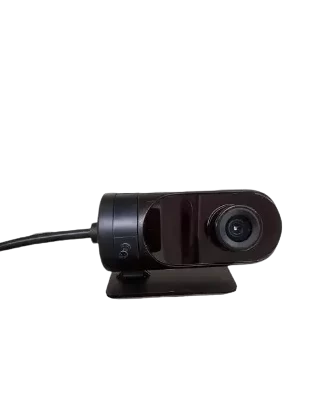

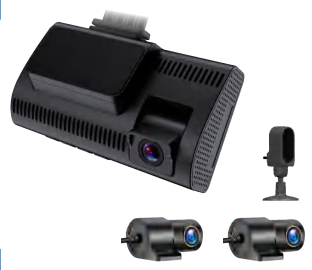

HB-T8 has a built-in ADAS camera and also allows three more cameras and one SOS alarm button. We provide normal 720P in-cabin cameras and the sub cameras can be infrared cameras.
MOQ and lead time depend on the model and customization scope. Standard models without customization typically ship within [X] days at lower MOQ. Custom OEM/ODM orders require a higher MOQ and longer lead time due to branding, firmware, and packaging adjustments. Reach out to our sales team for a specific quote based on your requirements.
Yes. HBOIOT provides OEM and ODM services for fleet dash cams, covering branding, packaging, firmware customization, and hardware adjustments. Contact our sales team with your requirements and we will provide a tailored quote.
A 2-channel dash cam covers front road and driver cabin — enough for basic fleet monitoring. A 4-channel system adds two more cameras for side views, rear coverage, or cargo-area surveillance. For ride-hailing and public transport operators who need complete cabin and perimeter visibility, a 4-channel setup provides evidence from every angle and supports dedicated DMS driver behavior analysis on its own camera channel without sacrificing road coverage.

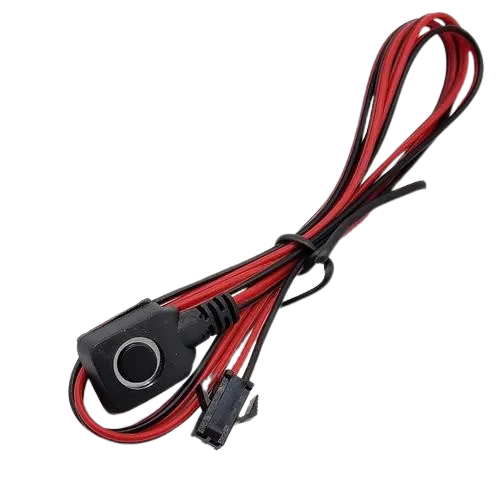

The HB-T8 runs ADAS (lane departure warning, forward collision warning) and DMS (fatigue and distraction detection) on-device. It supports geo-fence alerts when a vehicle enters or exits a defined route zone, overspeed and driving-overtime alarms, and a wired SOS panic button that triggers an instant cloud alert with a still-image snapshot from any camera channel.
The HB-T8 records from up to four cameras simultaneously — a 720P ADAS front camera, an optional DMS cabin camera, and two AHD auxiliary channels. Footage is encoded in H.264 and saved to a Class 10 SD card (up to 512 GB) while being uploaded to the cloud over 4G LTE. GPS/Beidou positioning stamps every frame with location data. On-device ADAS and DMS algorithms process video in real time and trigger audible alerts for forward collision risk, lane departure, and driver fatigue without relying on a server connection.
The HB-T8 is used in ride-hailing fleets, trucking and logistics companies, public buses, school buses, taxis, and government vehicle fleets. Its four channels cover the road ahead, the driver cabin, and side or cargo areas simultaneously, making it a fit for any commercial operation that needs multi-angle video evidence for insurance claims, driver management, or regulatory compliance. The 4G module pushes footage to the cloud in real time, so fleet managers do not need to physically retrieve SD cards from vehicles.
HBOIOT dashcam is a camera mounted on the vehicle’s dashboard or windshield that continuously records the view of the road, traffic, and more.
HBOIOT Dashcam can bring safety and peace of mind in complex road conditions.
-Evidence in Accidents.
-Fleet operation monitoring.
-Insurance Claims.
-Monitoring Driver Behaviour.
-Parking Security.
