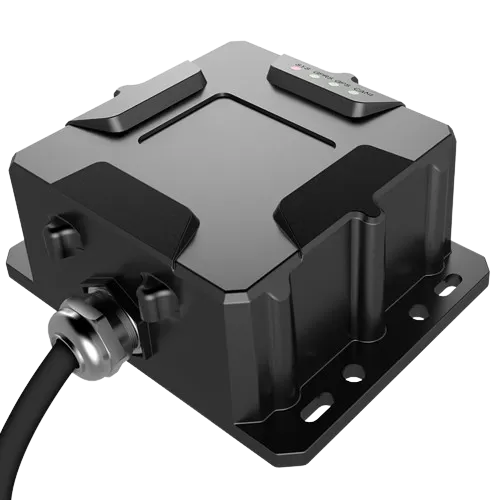

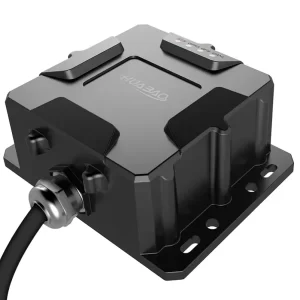

HB-A1T Series – Rugged 4G GPS E-seal Padlock Tracker for Heavy-Duty Applications
The HB-A1T is a robust 4G GPS E-seal padlock tracker designed for long-term monitoring and security of high-value assets in harsh environments. Built with a solid waterproof IP67-rated enclosure, this device is ideal for agricultural machinery, construction vehicles, and mobile containers.
Equipped with an industrial-grade backup battery, the HB-A1T is available in two versions:
HB-A1T 8000: 8000mAh battery for extended standby time
HB-A1T 15000: 15000mAh battery for ultra-long-lasting operation

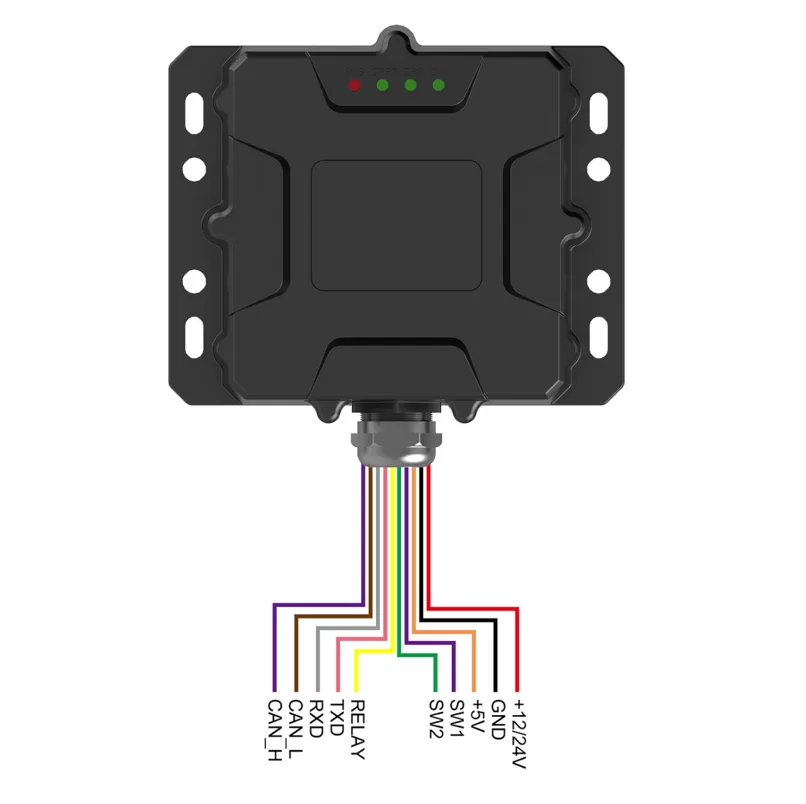

The HB-A1T also supports 1 CAN bus channel, enabling real-time monitoring of vehicle status and sensor data such as fuel levels, engine hours, or maintenance alerts.
Whether used as a GPS padlock for securing cargo or as a vehicle tracker, the HB-A1T ensures high security, precise tracking, and dependable performance in rugged field conditions.
HB-A1T is a wired GPS Tracker with a built-in high-capacity battery that can continue working after the ignition is off. With a dust-proof and waterproof design and 2G/4G connectivity, HB-A1T is applicable for agricultural and construction sites, as well as ships. We can add a Bluetooth or loRa communication module and a 1-Wire interface that can connect with more accessories to meet different vehicle positions and monitoring needs
|
Function |
Parameter |
Note |
|
Communication |
2G&4G |
The module varies by region or project |
| Mode | GPS/BDS |
|
|
NAND Flash 8MBit |
Record 10000 pieces of communication blind zone data. |
Storage record loop coverage. |
|
Buzzer |
Built-in buzzer |
Supports speeding alarm. |
|
Weight |
400g |
|
| Dimension | 100*114*44.5mm | |
| Ingress Protection Ratings | IP67 | Waterproof |
| Backup Battery | 8000mAh | optional 15000mAh |
| Standby time | 14 days | 10 min/ data |
| Antennas | Built-in Antennas | GNSS&Communication Antennas |

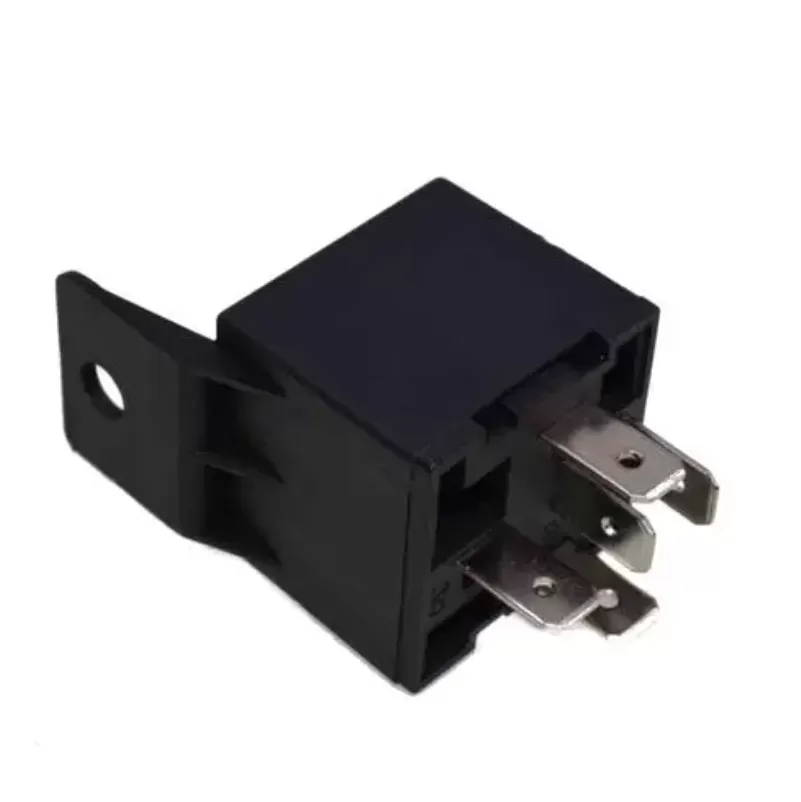

The basic version of the device supports an external relay and a sensor, such as a Capacitive Fuel Level Sensor, a Door Sensor, an RPM Sensor, or a Temperature Sensor. If the basic version cannot cover all your requirements, we offer an optional integrated Bluetooth receiver and an ultrasonic fuel level sensor connected via Bluetooth to expand the functionality of the device.
Thanks to its large battery (8000mAh or 15000mAh), the HB-A1T can remain in standby mode for weeks or even months, depending on reporting frequency and environmental factors.
The main difference is the battery capacity:
HB-A1T 8000 comes with an 8000mAh backup battery.
HB-A1T 15000 is equipped with a 15000mAh battery, offering longer standby and working times.
The HB-A1T is a rugged 4G GPS tracker with E-seal padlock features, designed to monitor and secure agricultural equipment, construction machinery, and mobile containers. It provides real-time tracking and status monitoring, even in harsh outdoor environments.
We have ISO9001:2015, ISO14001:2015, ISO45001:2018, IATF16949:2016, CMMI3.
Yes, we can provide driving data recorders and speed limiters with positioning and communication modules. They can support uploading location data, photos, and sound to the platform, ensuring data security and improving management and monitoring efficiency.
No, we cannot track vehicles when network coverage is non-existent, because the devices are not able to send the location to the server when there is no network. However, trackers will report positioning data when vehicles re-enter an area with the cellular network. We can check the blind spot data and view the location history of the device.
Yes, we provide a Tracking platform and you can check the location and other data via computer and mobile phone.
