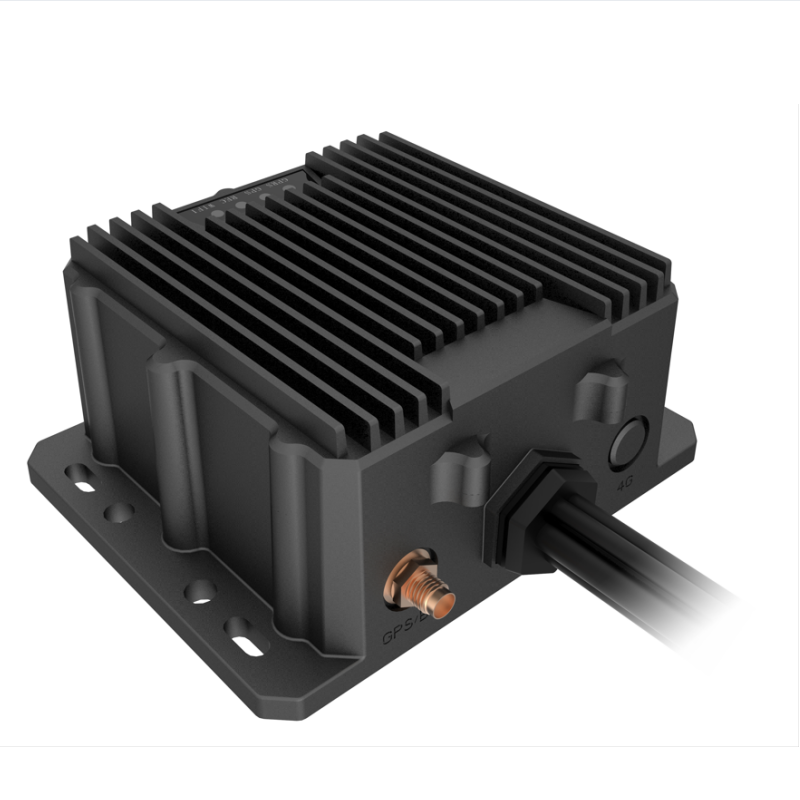

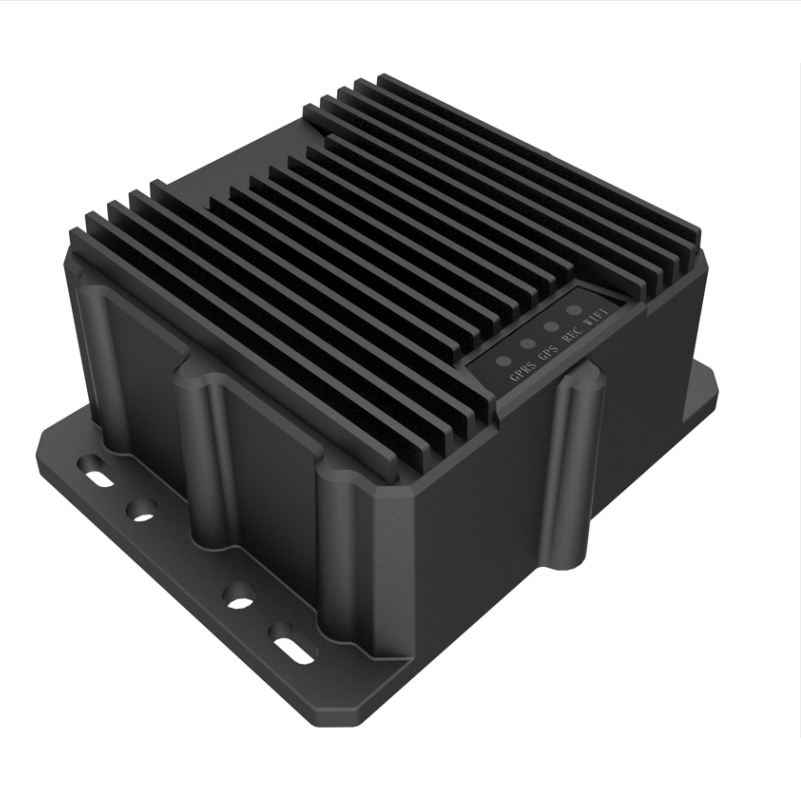

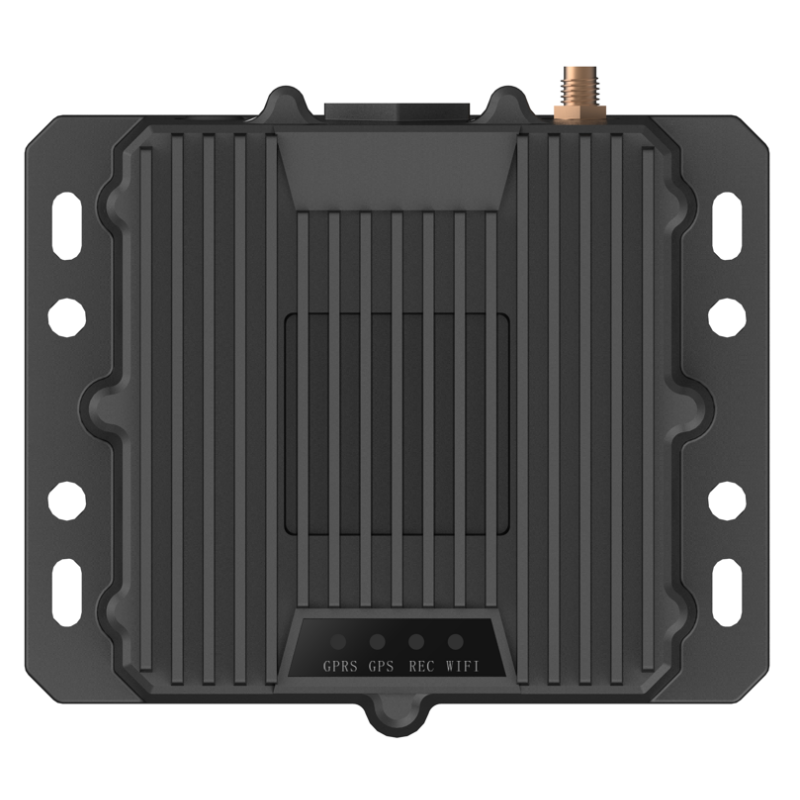

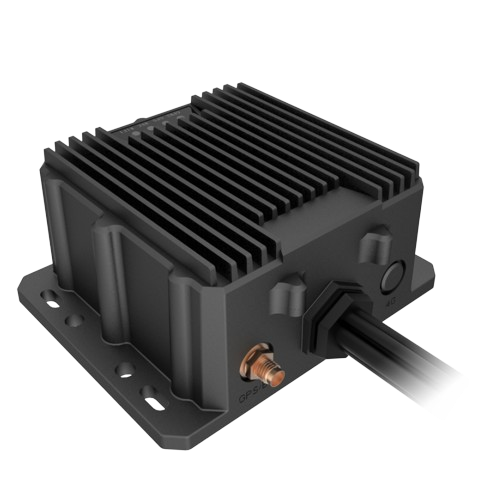

AI Mobile DVR HB-VT08

HB-VT08 supports 4 channels of video signal input with a resolution of up to 720P. It provides a video telematics solution to capture crucial information such as location, speed, acceleration, braking, driving behavior, and driver status. The artificial intelligence system analyzes driving behavior in real-time and provides audio alerts to drivers when they engage in unsafe actions like speeding or swerving and reports to the monitoring center.

Product Description

Video telematics solution with cutting-edge technology, with the functions of real-time positioning, driving behavior warning, road and driver behavior recording, and driving habit analyzing. The device has a built-in battery that can continue to work for a certain time after the car is turned off. It is also an active safety system with a GPS module, a built-in G-sensor, and AI algorithms combined with external cameras, all data can be sent by the communication module to the designated servers and generate reports with the help of our platform.

Specifications

AI MOBILE DVR HB-VT08

Function		Parameter	Note
Hardware	Dimensions	100 x114 x44.5mm (L x W x H)
	Weight	400g
	Ingress Protection Rating	IP65
Power	Input Voltage Range	9 – 36 V DC with overvoltage protection
	Working Current	800mA
	Dormant Working Current	60mA
Communication	Cellular Network	4G LTE(Cat4)/3G/2G
Communication	WIFI	WIFI 2.4G
GNSS	Module	GPS/Beidou
Camera	Front Camera	1280*720/30fps/f2.2/Full Color	ADAS
	Sub Camera	1280*720/30fps/f2.0/Full Color	DMS
	AHD3	1280*720/15FPS/F2.0/Full Color
	AHD4	1280*720/15FPS/F2.0/Full Color
	Video Format	H.264
Storage	Storage Capacity	256G/ 512GB
Storage	Playback	Support	PC software (Web /APP)

Product Model

Related Models

Additional Components

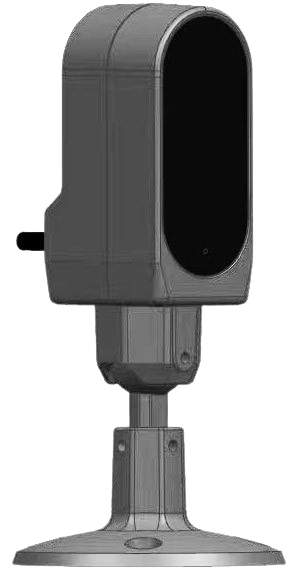

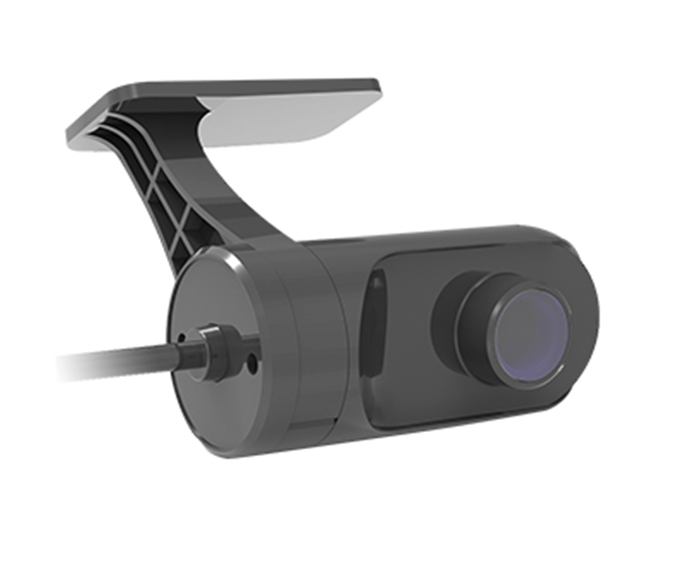

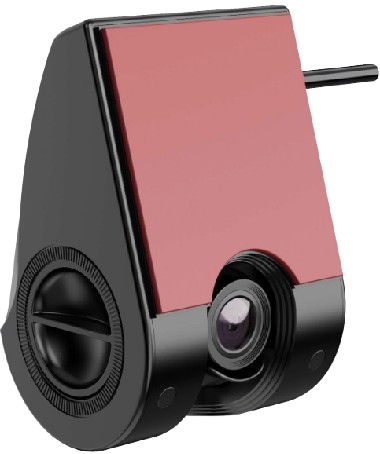

On account of the requirements for camera angles, we provide cameras specifically designed for ADAS and DMS functions. If these functions are not needed, 4 regular AHD cameras can also be used with HB-VT08.

Features

4-CH AI Mobile DVR HB-VT08

7×24-hour Recording on 2 cameras 720p ( 512GB)
Active Safety Function(ADAS,DMS)
Lane Departure Detection
Traffic Sign Recognition
4G Cat4 Cellular Network
Real-time GPS tracking
Video Surveillance
Geo-fences(Routes)
RS232 for different sensors (Fuel, Temperature)
Ignition Switch Detection
Record Vehicles Data Without Network
Pedestrian Detection
Forward Collision
Driver Dozing/Distracted Driving Detection
Use of phone/Smoking while driving Detection
Undesignated Driver Detection
Alert when seat belt not worn
Harsh cornering/ acceleration monitoring
Hard braking detection
Impact detection
Power Cut alarm
SOS alarm (Panic Button)
Alarms (Camera signal, Camera obstruction, Abnormal GPS antenna)

FAQ

Why is my VT08 unable to obtain GPS location?
1. Please check if your SIM card has sufficient data.
2. Please check the antenna installation and whether there are any metal obstructions around the antenna.
3. Please try restarting.
Why is the DSM camera image mirrored?

The first camera has been place to mirror; simply adjust it back. Otherwise, false alarms may occur.
How does AI Mobile DVR HB-VT08 collect and export video data?
1. Video with specified date, start time, end time, and channel number.
2. The date, start time, and end time are based on the recording period in the device’s video playback.
3. Place the exported TXT text file in the root directory of your USB drive, then insert it directly into the device to start automatic data collection. Voice notifications will be displayed at the beginning, during, and end of the collection process.
What alarms are triggered when AI Mobile DVR HB-VT08 detects speed limit signs?
1. Speed limit at 100km/h, please control your vehicle speed.
2. Speed limit at 90km/h, please control your vehicle speed.
3. Speed limit at 80km/h, please control your vehicle speed.
Why is my VT08 video telematics device offline?
1. Check if the GPRS indicator light flashes; it should remain on when the connection is successful
2. Check if the SIM card has data
3. Check three parameters:IP,port and APN
4. Reconnect the power cable to restart and restore the device
